Seco

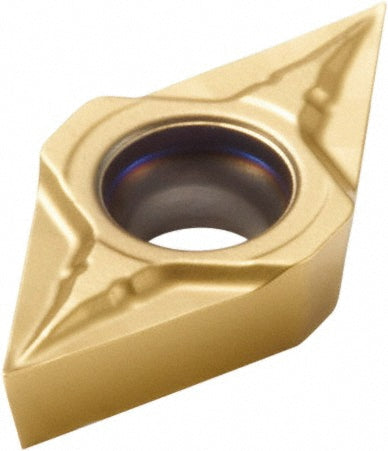

DCGT11T301-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02430360
MFR# 02430360ISO/ANSI# DCGT32.50-F1Series DCGT-F1
$30.91List $39.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02430360 is a DCGT11T301-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle55degree
Industry standard numberDCGT32.50-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code32.50
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T301-F1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02430360
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4528
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
