Seco

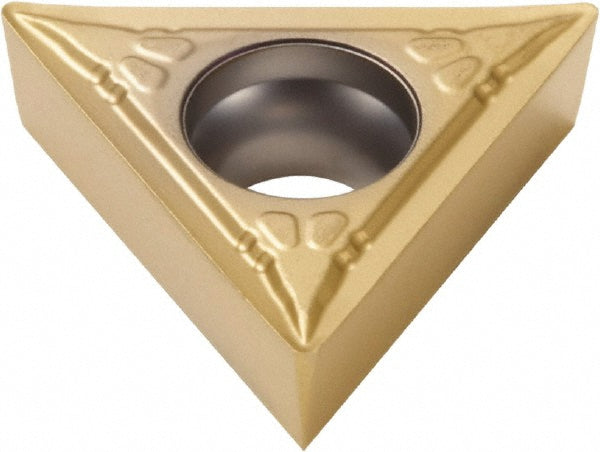

TCMT110202-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02430419
MFR# 02430419ISO/ANSI# TCMT21.50.5-F1Series TCMT-F1
$19.10List $24.07
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02430419 is a TCMT110202-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle60degree
Industry standard numberTCMT21.50.5-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21.50.5
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110202-F1
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number02430419
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4134
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.4331in
Wiper edgeNo
