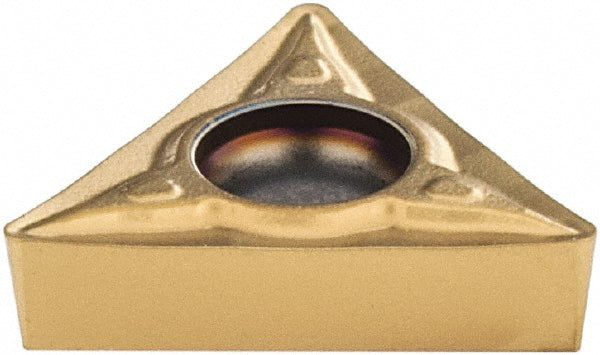

TCMT110204-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02430421

Seco

TCMT110204-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02430421

MFR# 02430421ISO/ANSI# TCMT21.51-F1Series TCMT-F1

$14.32List $18.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02430421 is a TCMT110204-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerF1
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle60degree
Industry standard numberTCMT21.51-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT110204-F1
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number02430421
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.3937
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width0.4331in
Wiper edgeNo
