Seco

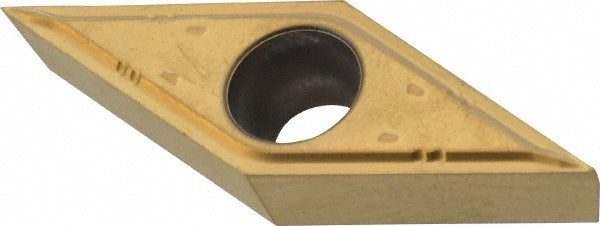

VBGT160401-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02430444
MFR# 02430444ISO/ANSI# VBGT330-F1Series VBGT-F1
$37.64List $48.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02430444 is a VBGT160401-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle35
Industry standard numberVBGT330-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond
Insert size code330
Insert styleVBGT
Insert thickness in3/16
Iso codeVBGT160401-F1
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number02430444
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.6260
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
