Seco

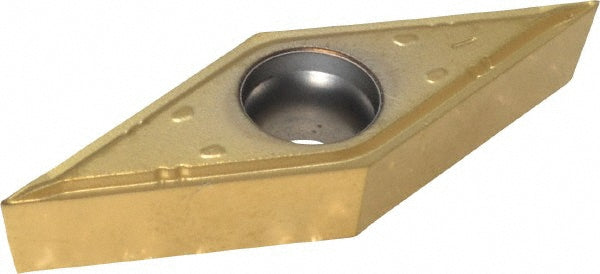

VBMT160402-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02430446
MFR# 02430446ISO/ANSI# VBMT330.5-F1Series VBMT-F1
$32.06List $40.41
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02430446 is a VBMT160402-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle35degree
Industry standard numberVBMT330.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeDiamond 35
Insert size code330.5
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160402-F1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02430446
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.6339
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
