Seco

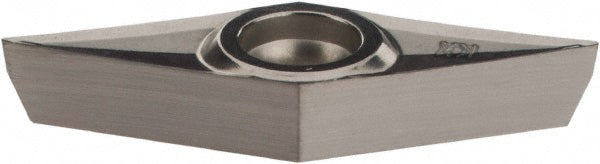

VCGT160402F-AL Carbide Insert, Grade KX - Seco 02430465
MFR# 02430465ISO/ANSI# VCGT330.5F-ALSeries VCGT-AL
$29.22List $37.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKX
MaterialCarbide
Description
The Seco 02430465 is a VCGT160402F-AL carbide indexable insert, grade KX. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Coating processUncoated
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1732
Included angle35degree
Industry standard numberVCGT330.5F-AL
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond 35
Insert size code330.5
Insert styleVCGT
Insert thickness in3/16
Iso codeVCGT160402F-AL
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02430465
Manufacturer gradeKX
Material gradeN15; N20; N25
Maximum depth of cut0.6457
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
