Seco

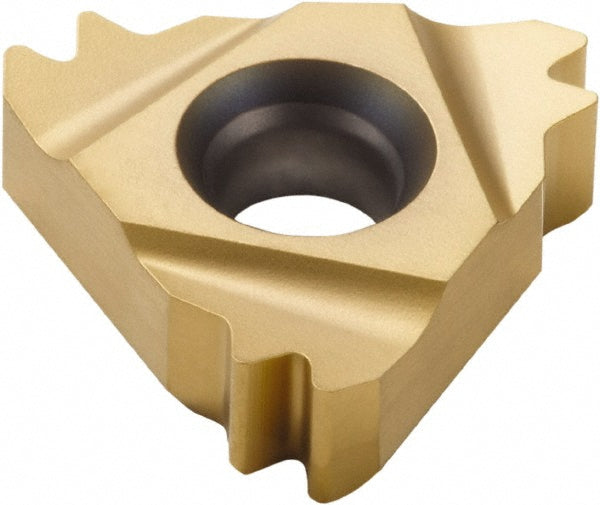

0.6252" IC Solid Carbide Insert, Grade CP300, Coated - Seco 02435716
MFR# 02435716Series Snap Tap
$159.40List $200.88
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP300
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02435716 is a solid carbide indexable insert, grade CP300, Coated coated. Suited for steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.4600
Included angle60
Inscribed circle0.6252
Insert handRight Hand
Insert materialSolid Carbide
Insert size code27
Insert style27ER
Manufacturer gradeCP300
Primary workpiece materialSteel
StandardsISO
Thickness0.2421
Threads per inch8
Thread standardAPI Round
Thread typeExternal
