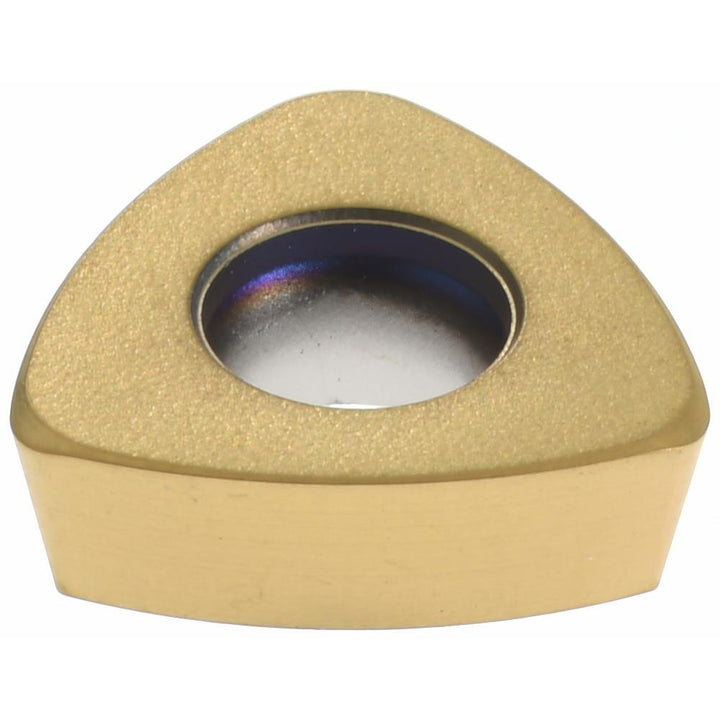

218.19-100T-MD08 Solid Carbide Insert, Grade F15M, TiAlN - Seco 02439189

Seco

218.19-100T-MD08 Solid Carbide Insert, Grade F15M, TiAlN - Seco 02439189

MFR# 02439189ISO/ANSI# 218.19-100T-MD08Cat# 218.19-100T-MD08Series 218.19-100

$24.34List $31.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeF15M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 02439189 is a 218.19-100T-MD08 solid carbide indexable insert, grade F15M, TiAlN coated. Suited for hard material.

Specifications

Ansi code218.19-100T-MD08
Chip breakerMD08
Coating finishTiAlN
Coating processPVD
Convex radius0.3937
Corner radius in1/32
Cutter series compatibilityR218.19-20; R217.21-R100
Cutting edge styleT-Land
Hole diameter0.1181
Included angle degree60
Inscribed circle0.2780
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size100
Insert size code100T
Insert style218.19
Iso code218.19-100T-MD08
Length0.2780
Length range0.0000 to 0.3200
Manufacturers catalog number218.19-100T-MD08
Manufacturer gradeF15M
Material applicationHard Material
Material gradeFine Grain
Maximum depth of cut0.0290
Multi use toolYes
Number of cutting edges3
Primary workpiece materialHard Material
RakeNeutral
Rake angle0
Relief angle12.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in7/64
Thickness range0.1000 to 0.1250
Width0.2780
