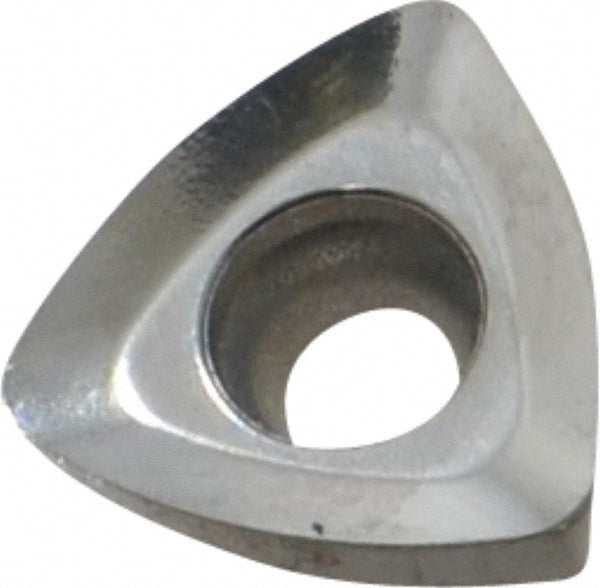

218.19-160-04-E07 Solid Carbide Insert, Grade H25 - Seco 02439321

Seco

218.19-160-04-E07 Solid Carbide Insert, Grade H25 - Seco 02439321

MFR# 02439321ISO/ANSI# 218.19-160-04-E07Cat# 218.19-160-04-E07Series 218.19-160

$28.39List $36.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeH25
MaterialSolid Carbide

Description

The Seco 02439321 is a 218.19-160-04-E07 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.

Specifications

Ansi code218.19-160-04-E07
Chip breakerE07
Coating processUncoated
Convex radius0.6299
Corner radius in3/64
Cutter series compatibilityR218.19-32; R217.21-R160; R220.21-R160
Cutting edge styleHoned
Hole diameter0.1575
Included angle degree60
Inscribed circle0.4402
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size160
Insert size code160-04
Insert style218.19
Iso code218.19-160-04-E07
Length0.4402
Length range0.4000 to 0.4500
Manufacturers catalog number218.19-160-04-E07
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle12
Secondary workpiece materialSuperalloys & Titanium
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4402
