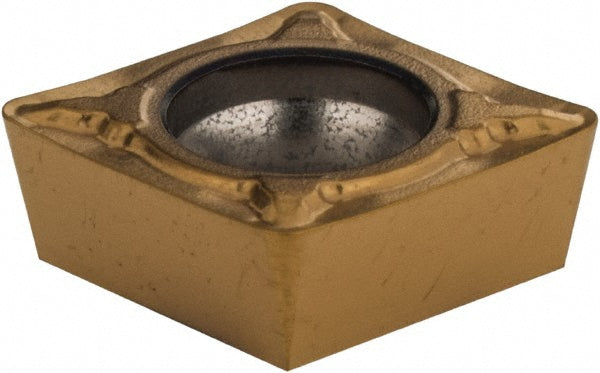

CPMT09T308-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02440672
MFR# 02440672ISO/ANSI# CPMT32.52-F1Series CPMT-F1
$14.90List $19.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02440672 is a CPMT09T308-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerF1
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCPMT32.52-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T308-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02440672
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.3228
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle11
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
