Seco

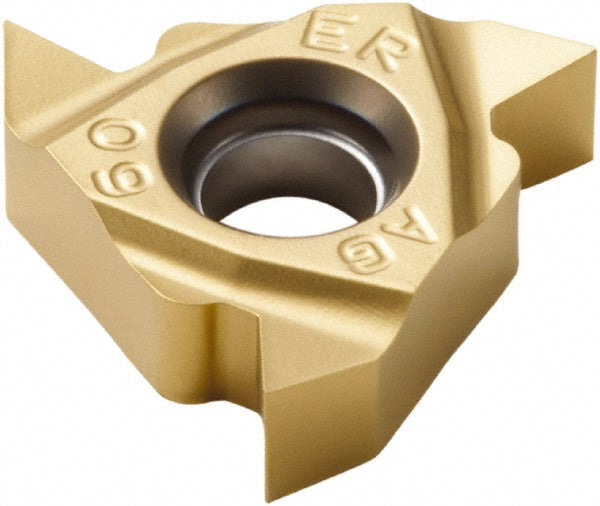

0.3752" IC Solid Carbide Insert, Grade CP500, Coated - Seco 02444854
MFR# 02444854Series Snap Tap
$28.54List $36.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02444854 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for universal.
Specifications
ChipbreakerA
Coating finishCoated
Coating processPVD
Corner radius0.0800
Included angle60
Inscribed circle0.3752
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16ER
Manufacturer gradeCP500
Pitch (mm)0.50 to 1.50
Primary workpiece materialUniversal
StandardsISO
Thickness0.1366
Threads per inch48-16
Thread typeExternal
