Seco

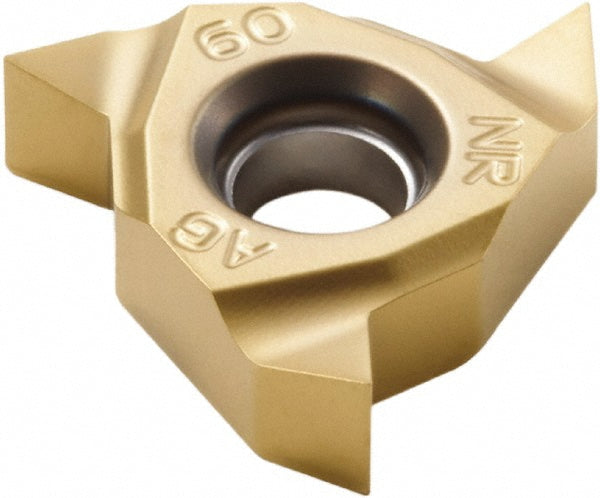

1/4" IC Solid Carbide Insert, Grade CP500, Coated - Seco 02444861
MFR# 02444861Series Snap Tap
$34.72List $43.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeCP500
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02444861 is a solid carbide indexable insert, grade CP500, Coated coated. Suited for universal.
Specifications
ChipbreakerA
Coating finishCoated
Coating processPVD
Corner radius0.0800
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code11
Insert style11NR
Manufacturer gradeCP500
Pitch (mm)0.50 to 1.50
Primary workpiece materialUniversal
StandardsISO
Thickness0.1181
Threads per inch48-16
Thread typeInternal
