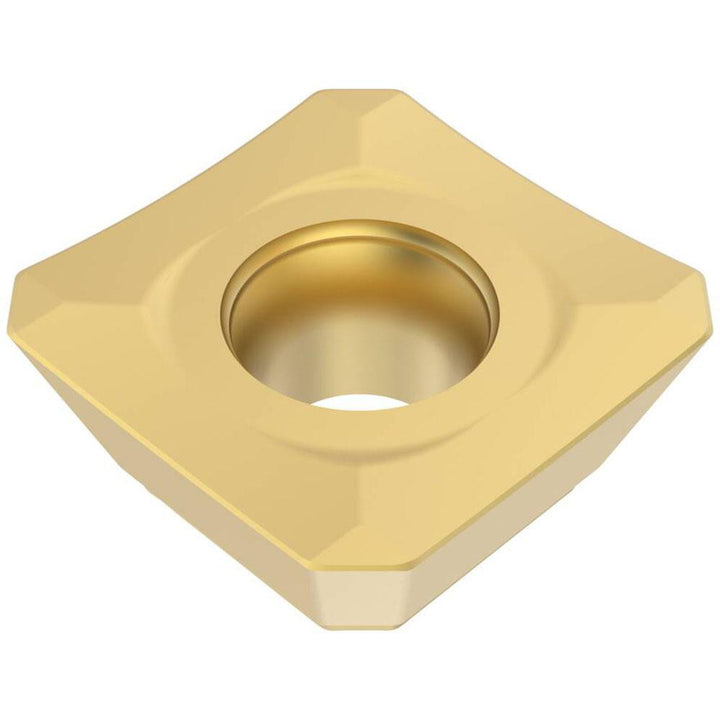

SEEX09T3AFTN-M08 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02449036
MFR# 02449036ISO/ANSI# SEEX09T3AFTN-M08Cat# SEEX09T3AFTN-M08Series SEEX-09
$19.87List $25.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02449036 is a SEEX09T3AFTN-M08 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSEEX09T3AFTN-M08
Chip breakerM08
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutter series compatibilityR217.53-09; R220.53-09
Cutting edge effective length0.3748
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSEEX
Iso codeSEEX09T3AFTN-M08
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSEEX09T3AFTN-M08
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2795
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle20
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
