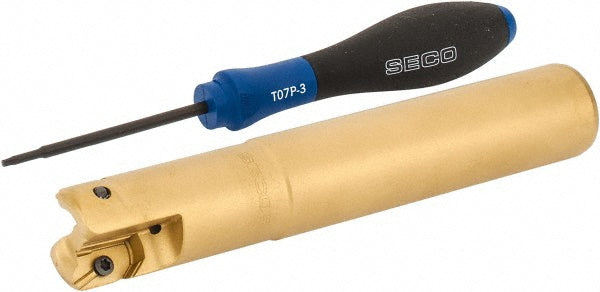

1" Indexable End Mills - Seco 02450377
MFR# 02450377Cat# R217.97-01.00-0-12.2ASeries R217
$763.52List $797.04
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 02450377 indexable end mills. Series R217.
Specifications
Compatible insert styleXPKX12
Coolant throughYes
Cutting diameter in1
Functional length2.1650
Head length2.2000
Insert holding methodScrew
Manufacturers catalog numberR217.97-01.00-0-12.2A
Maximum cutting diameter in1
Maximum depth of cut0.2950
Maximum rpm40000
Number of cutter inserts2
Number of flutes2
Overall length6.0000
Projection3.7200
Shank diameter in1
Shank length3.8000
Shank typeCylindrical
Toolholder materialSteel
Toolholder styleR217.29; R217.97
Tool applicationMilling
Weldon flatNo
