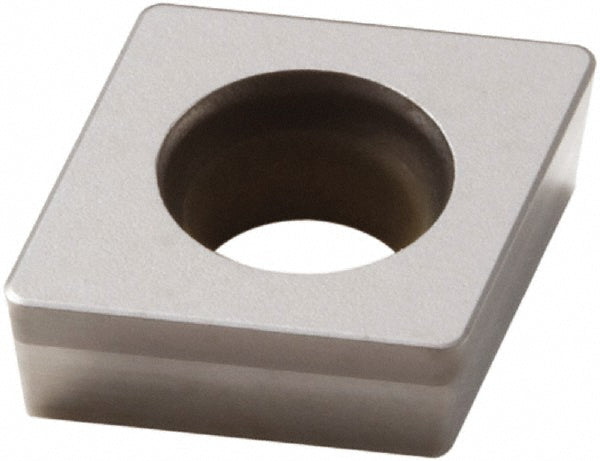

CCGW060208S-01020-LF Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02464700

Seco

CCGW060208S-01020-LF Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02464700

MFR# 02464700ISO/ANSI# CCGW21.52S-00420-LFSeries CCGW-Flat Top

$149.31
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeCBN200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)

Description

The Seco 02464700 is a CCGW060208S-01020-LF polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN200. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeC
Coating processPCBN
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCGW21.52S-00420-LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 80
Insert size code21.52
Insert styleCCGW
Insert thickness in3/32
Iso codeCCGW060208S-01020-LF
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number02464700
Manufacturer gradeCBN200
Material gradeK10; K20
Maximum depth of cut0.0768
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle0
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
