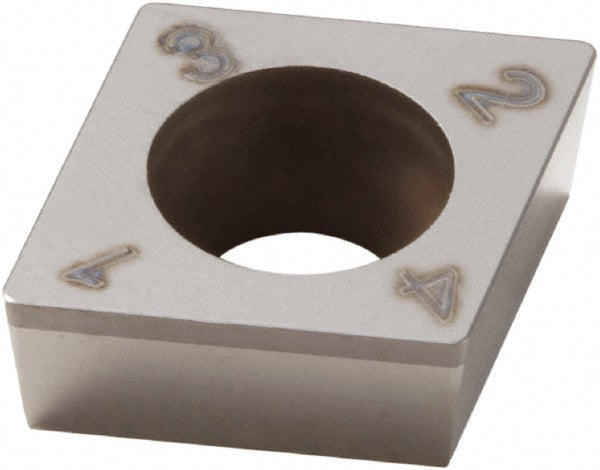

CCGW09T308S-01020-LF Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02464703

Seco

CCGW09T308S-01020-LF Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02464703

MFR# 02464703ISO/ANSI# CCGW32.52S-00420-LFSeries CCGW-Flat Top

$211.42
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeCBN200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)

Description

The Seco 02464703 is a CCGW09T308S-01020-LF polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN200. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeC
Coating processPCBN
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCGW32.52S-00420-LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 80
Insert size code32.52
Insert styleCCGW
Insert thickness in5/32
Iso codeCCGW09T308S-01020-LF
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number02464703
Manufacturer gradeCBN200
Material gradeK10; K20
Maximum depth of cut0.1146
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle0
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
