Seco

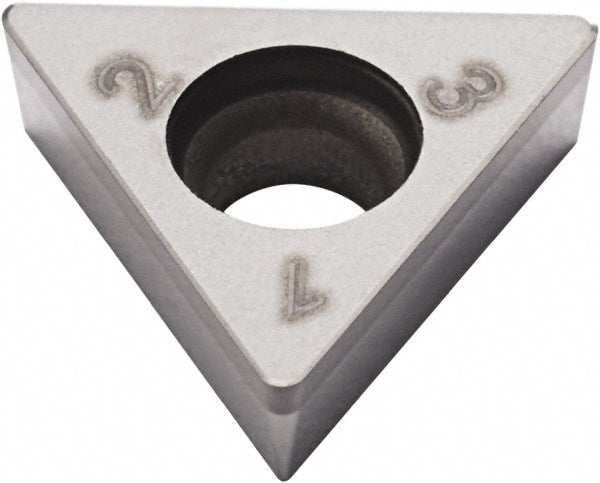

TCGW110208S-01020-LF Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02464744
MFR# 02464744ISO/ANSI# TCGW21.52S-00420-LFSeries TCGW-Flat Top
$214.69
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCBN200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Seco 02464744 is a TCGW110208S-01020-LF polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN200. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeC
Coating processPCBN
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle60degree
Industry standard numberTCGW21.52S-00420-LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeTriangle
Insert size code21.52
Insert styleTCGW
Insert thickness in3/32
Iso codeTCGW110208S-01020-LF
Lead angle60degree
Length range0.4000 - 0.5000
Manufacturers catalog number02464744
Manufacturer gradeCBN200
Material gradeK10; K20
Maximum depth of cut0.1299
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Rake angle0
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width0.4331in
Wiper edgeNo
