Seco

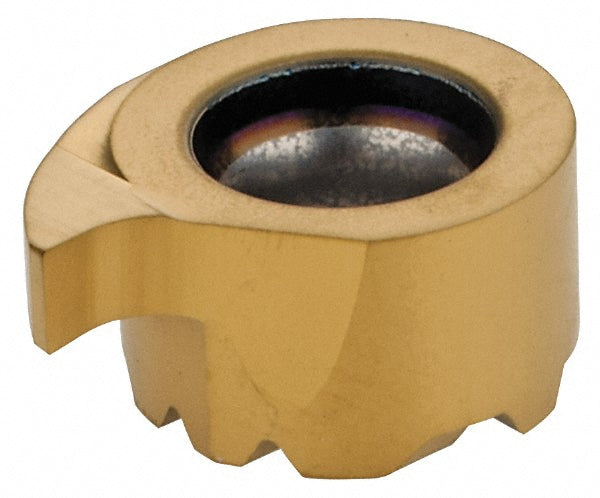

LCEX110501-0200R Carbide Insert, Grade CP500, TiAlN - Seco 02465998
MFR# 02465998ISO/ANSI# LCEX110501-0200RSeries LCEX-Common
$31.23List $40.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02465998 is a LCEX110501-0200R carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Full radiusNo
Inscribed circle0.4331
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert size code110501
Insert styleLCEX
Insert thickness0.1575
Iso codeLCEX110501-0200R
Lead angle90
Manufacturers catalog number02465998
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.1024
Multi use toolYes
Number of cutting edges1
Primary workpiece materialStainless Steel
RakePositive
Rake angle0
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
