Seco

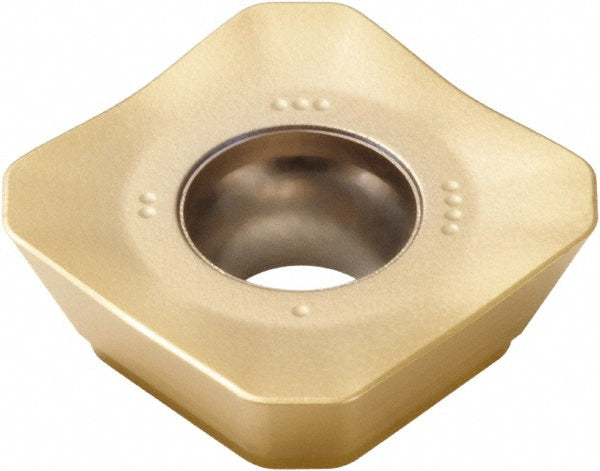

SEMX1505AFTN-M18 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02468532
MFR# 02468532ISO/ANSI# SEMX1505AFTN-M18Cat# SEMX1505AFTN-M18Series SEMX-15
$26.95List $34.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02468532 is a SEMX1505AFTN-M18 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSEMX1505AFTN-M18
Chip breakerM18
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutter series compatibilityR220.53-15
Cutting edge effective length0.6248
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1505
Insert styleSEMX
Iso codeSEMX1505AFTN-M18
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberSEMX1505AFTN-M18
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.4055
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle20
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
