Seco

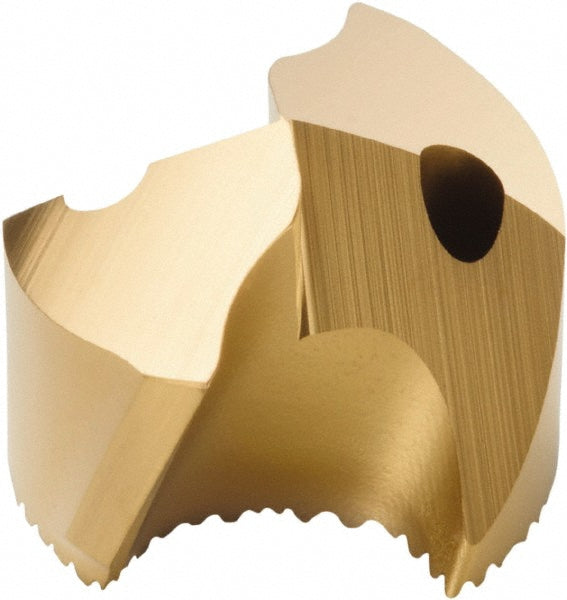

Carbide Insert, Grade UNSPEC, TiAlN - Seco 02469140
MFR# 02469140Series Crownloc
$179.94List $199.80
Save 9%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeUNSPEC
CoatingTiAlN
Description
The Seco 02469140 is a carbide indexable insert, grade UNSPEC, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material.
Specifications
ApplicationsSteel
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.9331
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4273
Height0.5984
Included angle degree140
Insert geometryP
Insert holding methodClamp
Iso numberSD100-23.813-P
Manufacturer gradeUNSPEC
Number of flutes2
Overall length projection0.5980
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
Spiral typeRegular Spiral
StyleCrownloc
Tip materialSolid Carbide
