Seco

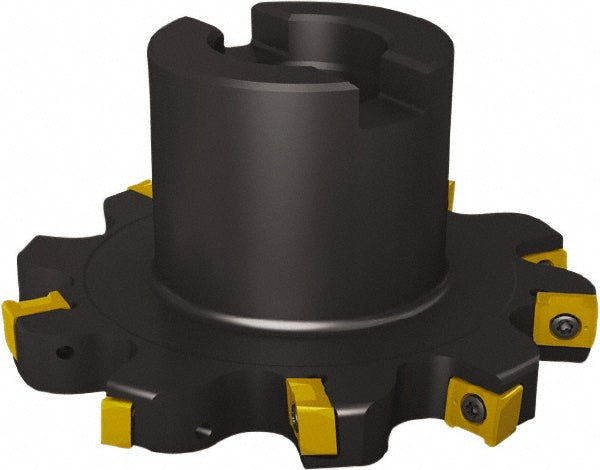

Indexable Milling Cutters - Seco 02479032
MFR# 02479032Cat# R335.18-04.00-0.75F-3NSeries R335.18
$1,475.46List $1,620.00
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.4
Description
The Seco 02479032 indexable milling cutters. Suited for stainless steel, steel. Series R335.18.
Specifications
Compatible insert size code0805..
Compatible insert styleLNK
Complete insert compatibilityLNK.0805..
Connection typeArbor
Coolant throughNo
Cutter body width0.7500
Cutter diameter in4
Cutting directionRight Hand
Cutting width in3/4
Hole diameter in1
Hub diameter1.8800
Insert holding methodScrew
Keyway width0.3820
Lead angle90
Manufacturers catalog numberR335.18-04.00-0.75F-3N
Maximum cutting width0.7500
Maximum depth of cut1.0590
Maximum rpm9400
Minimum cutting width0.7500
Number of cutter inserts3
Number of teeth9
Primary workpiece materialStainless Steel; Steel
RadiusNo
RakePositive (Axial); Negative (Radial)
Toolholder styleR335.18
Tool applicationSide Milling; Disc Milling
Tool performanceGeneral Purpose
Tooth typeStaggered
