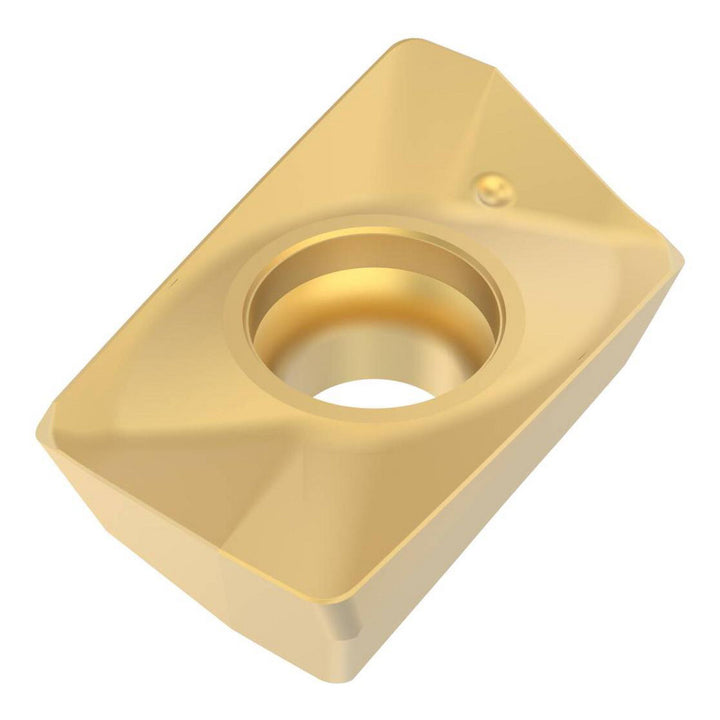

XOMX180608TR-MD15 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02485256
MFR# 02485256ISO/ANSI# XOMX180608TR-MD15Cat# XOMX180608TR-MD15Series XOMX-18
$31.40List $40.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02485256 is a XOMX180608TR-MD15 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeXOMX180608TR-MD15
Chip breakerMD15
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleXOMX
Iso codeXOMX180608TR-MD15
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180608TR-MD15
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15.9
Relief angle15.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
