Seco

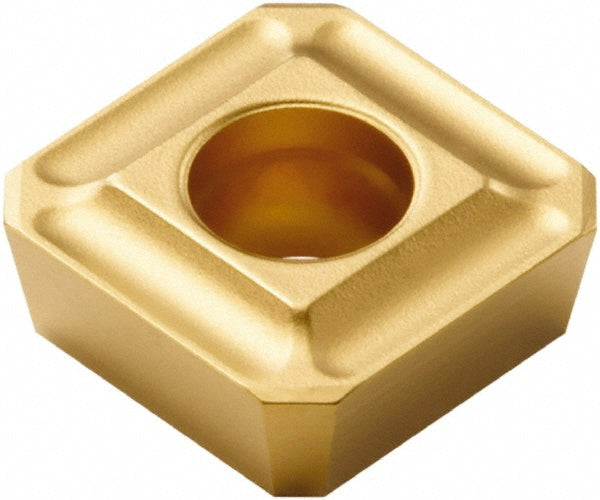

SPMX0903AP-75 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02493655
MFR# 02493655ISO/ANSI# SPMX0903AP-75Cat# SPMX0903AP-75Series SPMX-09
$20.70List $26.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02493655 is a SPMX0903AP-75 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSPMX0903AP-75
Chip breaker75
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityR215.39; R215.49-3; R417.19-3
Cutting edge effective length0.3750
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code0903
Insert styleSPMX
Iso codeSPMX0903AP-75
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSPMX0903AP-75
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3750
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
