Seco

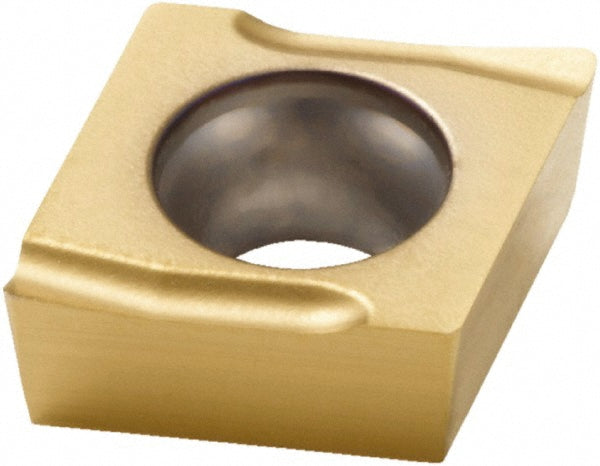

CCGT060204L-UX Carbide Insert, Grade CP500, TiAlN - Seco 02497631
MFR# 02497631ISO/ANSI# CCGT060204Series CCGT-UX
$21.93List $27.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02497631 is a CCGT060204L-UX carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.
Specifications
Ansi insert codeCCGT21.51
Ansi size code21.51
Chip breakerUX
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1102
Included angle80
Industry standard numberCCGT21.51L-UX
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060204L-UX
Iso insert codeCCGT060204
Iso size code060204
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number02497631
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2047
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
