CCGT09T304L-UX Carbide Insert, Grade CP500, TiAlN - Seco 02497640

Seco

CCGT09T304L-UX Carbide Insert, Grade CP500, TiAlN - Seco 02497640

MFR# 02497640ISO/ANSI# CCGT09T304Series CCGT-UX

$20.87List $26.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

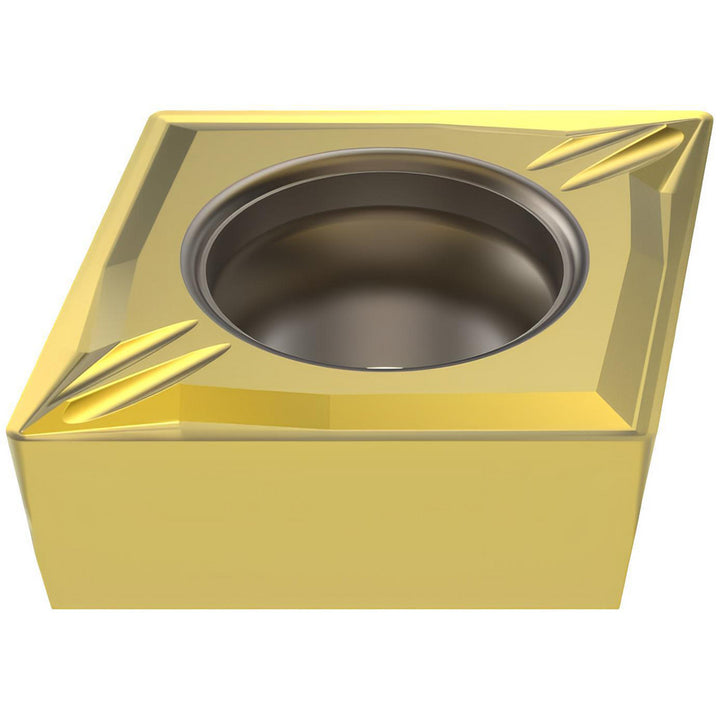

The Seco 02497640 is a CCGT09T304L-UX carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeCCGT32.51
Ansi size code32.51
Chip breakerUX
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Industry standard numberCCGT32.51L-UX
Inscribed circle in3/8
Insert handLeft Hand
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T304L-UX
Iso insert codeCCGT09T304
Iso size code09T304
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number02497640
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.2953
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
