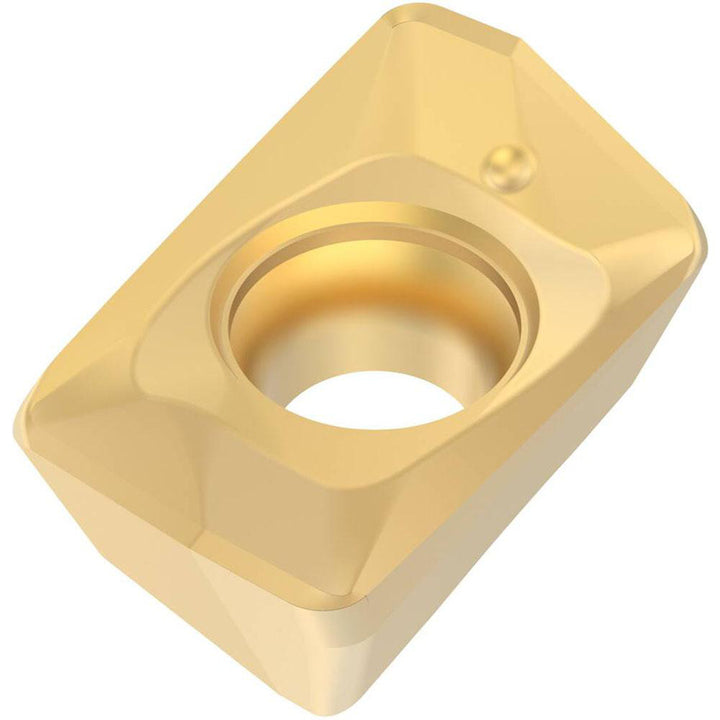

XOMX060208R-M05 Solid Carbide Insert, Grade F15M, TiAlN - Seco 02502362

Seco

XOMX060208R-M05 Solid Carbide Insert, Grade F15M, TiAlN - Seco 02502362

MFR# 02502362ISO/ANSI# XOMX060208R-M05Cat# XOMX060208R-M05Series XOMX-06

$18.60List $23.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeF15M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 02502362 is a XOMX060208R-M05 solid carbide indexable insert, grade F15M, TiAlN coated. Suited for hard material.

Specifications

Ansi codeXOMX060208R-M05
Chip breakerM05
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-06
Cutting edge effective length0.2165
Cutting edge styleHoned
Hole diameter0.0748
Included angle degree90
Inscribed circle0.1614
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size06
Insert size code060208
Insert styleXOMX
Iso codeXOMX060208R-M05
Length0.2165
Length range0.0000 to 0.3200
Manufacturers catalog numberXOMX060208R-M05
Manufacturer gradeF15M
Material applicationHard Material
Material gradeFine Grain
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle20.2
Relief angle15
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.0965
Thickness range0.0000 to 0.1000
Width0.1614
