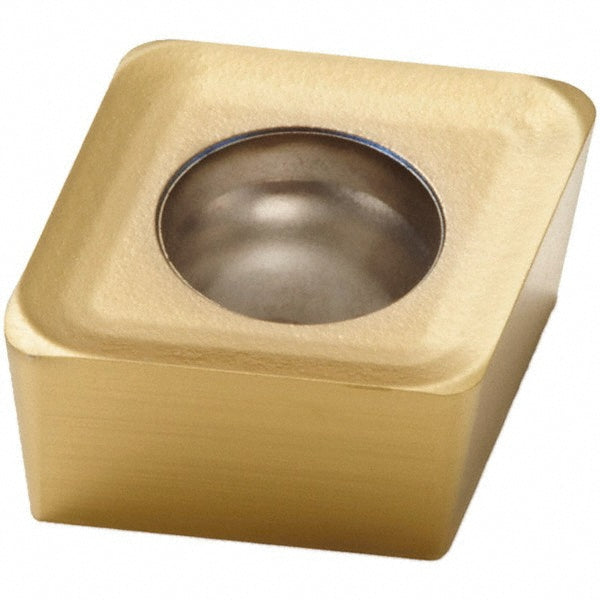

CCMX08T308-E07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02505878
MFR# 02505878ISO/ANSI# CCMX08T308-E07Cat# CCMX08T308-E07Series CCMX-08
$25.44List $32.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02505878 is a CCMX08T308-E07 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeCCMX08T308-E07
Chip breakerE07
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR215.59-08
Cutting edge effective length0.3161
Cutting edge styleHoned
Hole diameter0.1378
Included angle degree80
Inscribed circle0.3161
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeDiamond
Insert size08
Insert size code08T308
Insert styleCCMX
Iso codeCCMX08T308-E07
Length0.3161
Length range0.0000 to 0.3200
Manufacturers catalog numberCCMX08T308-E07
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3161
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeDiamond
Single or double sided insertSingle
StandardsISO
Thickness0.1732
Thickness range0.1500 to 0.1750
Width0.3161
