Seco

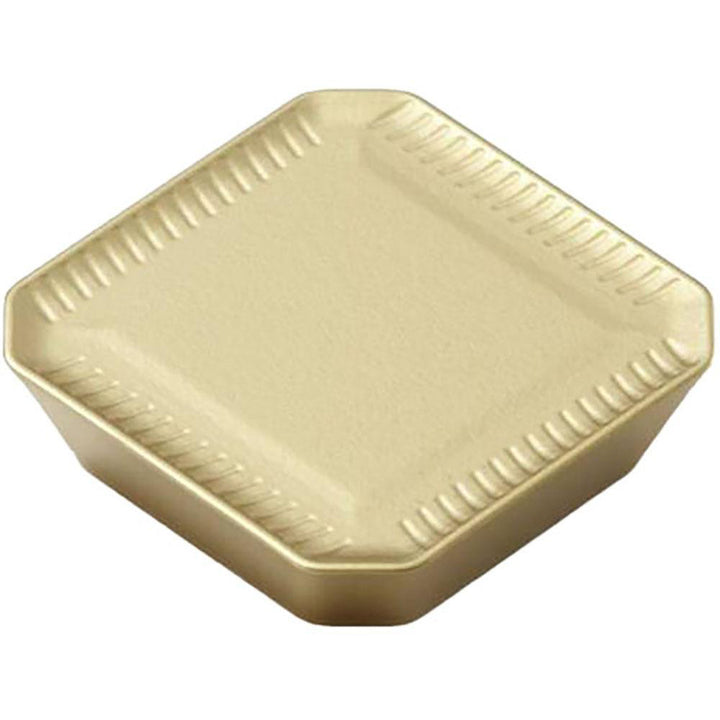

SEKR1303AFTN-ME13 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02505918
MFR# 02505918ISO/ANSI# SEKR1303AFTN-ME13Cat# SEKR1303AFTN-ME13Series SEKR-13
$22.32List $28.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02505918 is a SEKR1303AFTN-ME13 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSEKR1303AFTN-ME13
Chip breakerME13
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR220.13-12
Cutting edge effective length0.5291
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5291
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1303
Insert styleSEKR
Iso codeSEKR1303AFTN-ME13
Length0.5291
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKR1303AFTN-ME13
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2756
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle24
Relief angle20
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.1323
Thickness range0.1250 to 0.1500
Width0.5291
