Seco

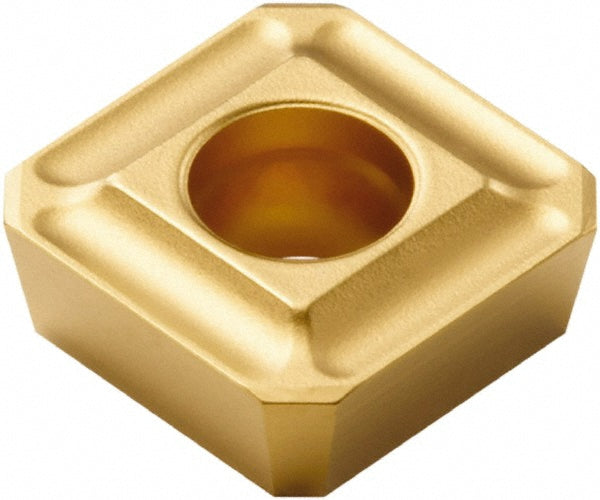

SPMX12T3AP-75 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02505937
MFR# 02505937ISO/ANSI# SPMX12T3AP-75Cat# SPMX12T3AP-75Series SPMX-12
$26.44List $33.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02505937 is a SPMX12T3AP-75 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSPMX12T3AP-75
Chip breaker75
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityR215.49-3; R220.69; R417.19-3
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.1496
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleSPMX
Iso codeSPMX12T3AP-75
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPMX12T3AP-75
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in1/2
