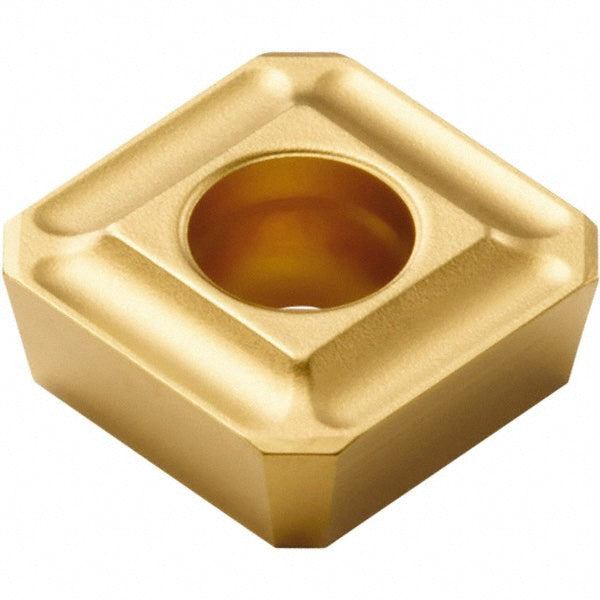

SPMX1504AP-75 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02505941

Seco

SPMX1504AP-75 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02505941

MFR# 02505941ISO/ANSI# SPMX1504AP-75Cat# SPMX1504AP-75Series SPMX-15

$28.62List $36.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 02505941 is a SPMX1504AP-75 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi codeSPMX1504AP-75
Chip breaker75
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutting edge effective length0.6250
Cutting edge styleT-Land
Hole diameter0.1732
Included angle degree90
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1504
Insert styleSPMX
Iso codeSPMX1504AP-75
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberSPMX1504AP-75
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6250
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in5/8
