Seco

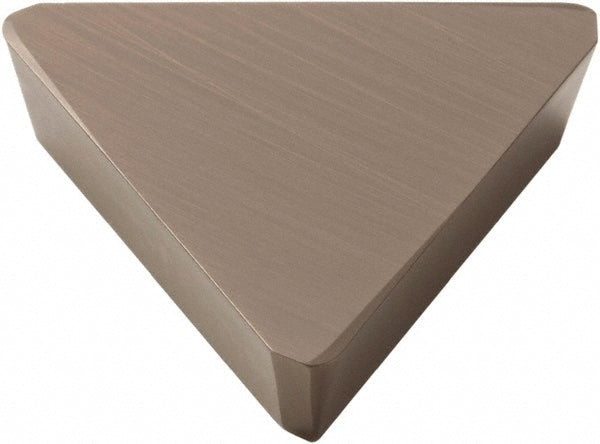

TPKN2204PDTR-MD15 Solid Carbide Insert, Grade T350M, TiCN - Seco 02505948
MFR# 02505948ISO/ANSI# TPKN2204PDTR-MD15Cat# TPKN2204PDTR-MD15Series TPKN-22
$29.05List $37.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeT350M
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02505948 is a TPKN2204PDTR-MD15 solid carbide indexable insert, grade T350M, TiCN coated. Suited for stainless steel.
Specifications
Ansi codeTPKN2204PDTR-MD15
Chip breakerMD15
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutter series compatibilityR220.17-22
Cutting edge effective length0.8661
Cutting edge styleT-Land
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size22
Insert size code2204
Insert styleTPKN
Iso codeTPKN2204PDTR-MD15
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberTPKN2204PDTR-MD15
Manufacturer gradeT350M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.8661
Multi use toolYes
Number of cutting edges3
Primary workpiece materialStainless Steel
RakeNeutral
Rake angle0
Relief angle11.00
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.8661
