Seco

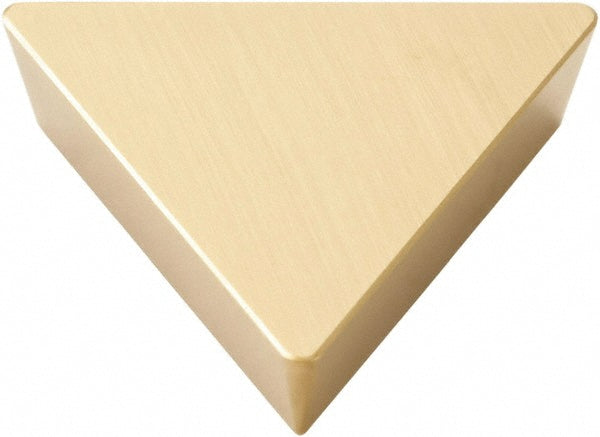

TPUN220408T Carbide Insert, Grade F40M, TiCN - Seco 02505954
MFR# 02505954ISO/ANSI# TPUN220408TSeries TPU
$23.58List $30.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeF40M
MaterialCarbide
CoatingTiCN
Description
The Seco 02505954 is a TPUN220408T carbide indexable insert, grade F40M, TiCN coated.
Specifications
Chip breakerFlat Top
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Full radiusNo
Included angle60degree
Industry standard numberTPUN220408T
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert shapeTriangle
Insert size code220408
Insert styleTPU
Insert thickness in3/16
Iso codeTPUN220408T
Manufacturers catalog number02505954
Manufacturer gradeF40M
Material gradeC5
Multi use toolYes
Number of cutting edges3
RakePositive
Relief angle11
StandardsANSI; ISO
Tolerance codeU
Wiper edgeNo
