Seco

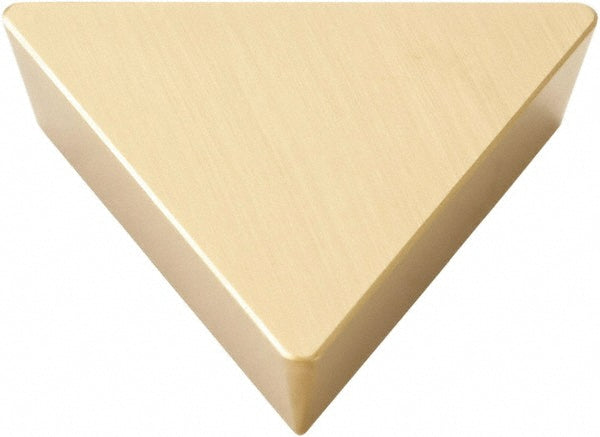

TPUN220412T Solid Carbide Insert, Grade F40M, TiAlN - Seco 02505955
MFR# 02505955ISO/ANSI# TPUN220412TCat# TPUN220412TSeries TPUN-22
$23.58List $30.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02505955 is a TPUN220412T solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeTPUN220412T
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityR220.17-22; R220.47
Cutting edge effective length0.7031
Cutting edge styleT-Land
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodWedge Clamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size22
Insert size code220412
Insert styleTPUN
Iso codeTPUN220412T
Length in45/64
Length range0.7000 to 0.9000
Manufacturers catalog numberTPUN220412T
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.7031
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNeutral
Rake angle0
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in45/64
