Seco

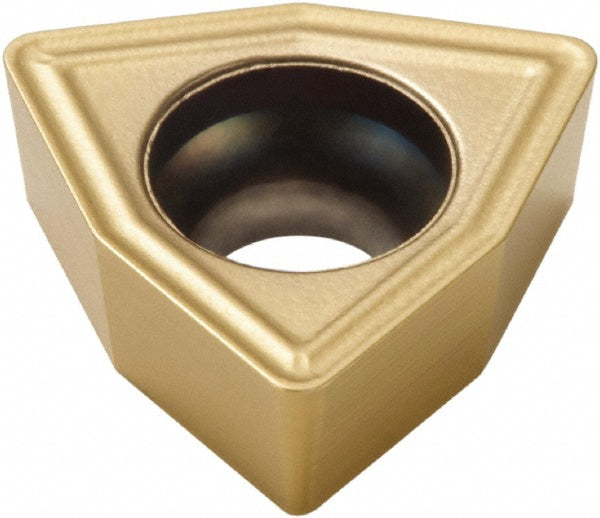

0.2190" IC Carbide Insert, Grade T400D, TiAlN - Seco 02506629
MFR# 02506629
$23.32List $29.39
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT400D
MaterialCarbide
CoatingTiAlN
Description
The Seco 02506629 is a carbide indexable insert, grade T400D, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0310
Included angle degree80
Inscribed circle0.2190
Insert materialCarbide
Insert size03
Insert size code03
Insert styleWCMX
Length0.136
Manufacturer gradeT400D
Primary workpiece materialUniversal
Relief angle7
ShapeTrigon
Thickness0.0940
