Seco

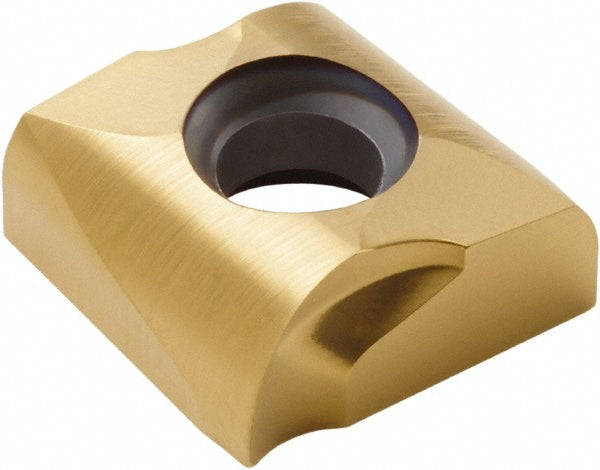

SNHQ120431ER2-M07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02509330
MFR# 02509330ISO/ANSI# SNHQ120431ER2-M07Cat# SNHQ120431ER2-M07Series SNHQ-12
$41.10List $52.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02509330 is a SNHQ120431ER2-M07 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSNHQ120431ER2-M07
Chip breakerM07
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibility335.19-12
Cutting edge effective length0.1575
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120431
Insert styleSNHQ
Iso codeSNHQ120431ER2-M07
Length0.1575
Length range0.0000 to 0.3200
Manufacturers catalog numberSNHQ120431ER2-M07
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1437
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width in1/2
