Seco
2-Flute Solid Carbide High-Feed End Mill, MEGA-T - Seco 02511199
MFR# 02511199Series JHF980
$103.69List $128.52
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

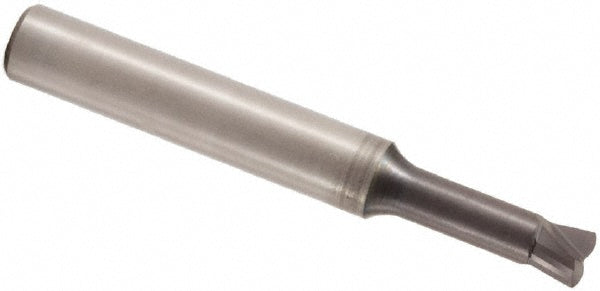

The Seco 02511199 is a 2-flute Solid Carbide (Micrograin) high-feed end mill with a MEGA-T finish for longer tool life. Series JHF980.
Specifications
CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
Extended reachYes
Finish coatingMEGA-T
Flute directionRight Hand
Flute typeStraight
Helix angle0
Length of cut (mm)0.10
Length typeShort
MaterialSolid Carbide
Material gradeMicrograin
Mill diameter (mm)1.50
Neck diameter (mm)1.20
Number of flutes2
Overall length (mm)40.00
Program radius (mm)0.18
Reach length (mm)4.50
Shank diameter (mm)6.00
Shank typeCylindrical
Single or double endSingle
