Seco

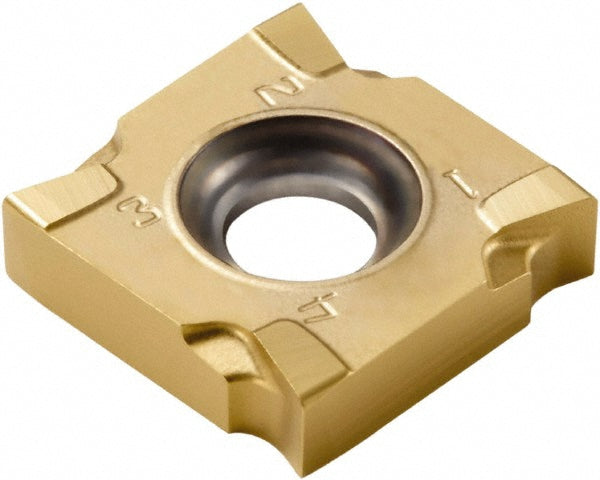

SNHQ110202TL4-M07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02526163
MFR# 02526163ISO/ANSI# SNHQ110202TL4-M07Cat# SNHQ110202TL4-M07Series SNHQ-11
$35.54List $45.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02526163 is a SNHQ110202TL4-M07 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSNHQ110202TL4-M07
Chip breakerM07
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutter series compatibility335.19-11
Cutting edge effective length0.0906
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size11
Insert size code110202
Insert styleSNHQ
Iso codeSNHQ110202TL4-M07
Length0.0906
Length range0.0000 to 0.3200
Manufacturers catalog numberSNHQ110202TL4-M07
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.0827
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.0906
Thickness range0.0000 to 0.1000
Width0.4331
