Seco

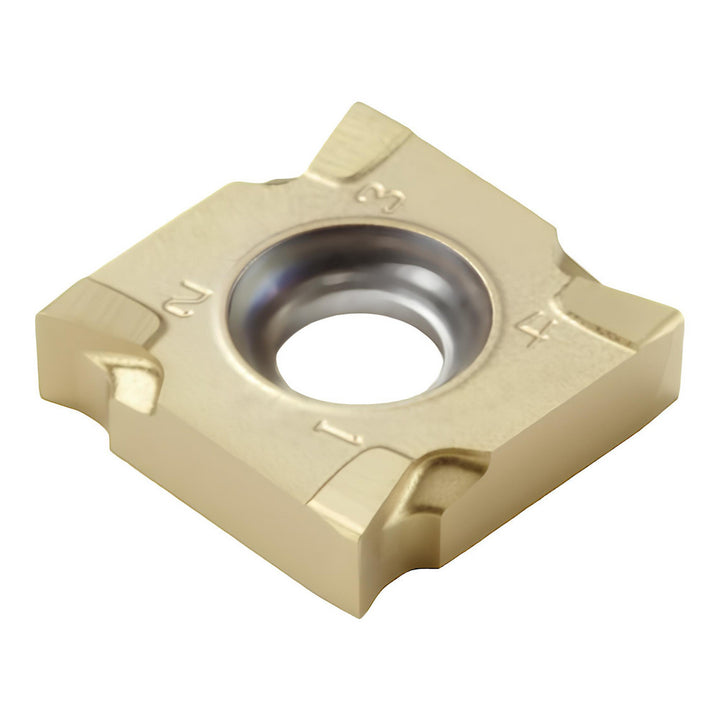

SNHQ110312TR4-M07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02526599
MFR# 02526599ISO/ANSI# SNHQ110312TR4-M07Cat# SNHQ110312TR4-M07Series SNHQ-11
$36.63List $46.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02526599 is a SNHQ110312TR4-M07 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSNHQ110312TR4-M07
Chip breakerM07
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibility335.19-11
Cutting edge effective length0.1063
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size11
Insert size code110312
Insert styleSNHQ
Iso codeSNHQ110312TR4-M07
Length0.1063
Length range0.0000 to 0.3200
Manufacturers catalog numberSNHQ110312TR4-M07
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1024
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.1063
Thickness range0.1000 to 0.1250
Width0.4331
