Seco

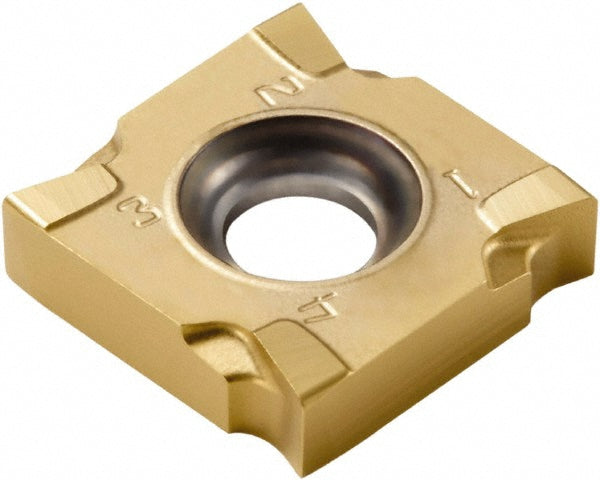

SNHQ120708TL4-M07 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02526642
MFR# 02526642ISO/ANSI# SNHQ120708TL4-M07Cat# SNHQ120708TL4-M07Series SNHQ-12
$47.00List $60.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02526642 is a SNHQ120708TL4-M07 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSNHQ120708TL4-M07
Chip breakerM07
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility335.19-12
Cutting edge effective length0.2756
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120708
Insert styleSNHQ
Iso codeSNHQ120708TL4-M07
Length0.2756
Length range0.0000 to 0.3200
Manufacturers catalog numberSNHQ120708TL4-M07
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2441
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.2756
Thickness range0.2500 to 0.3500
Width in1/2
