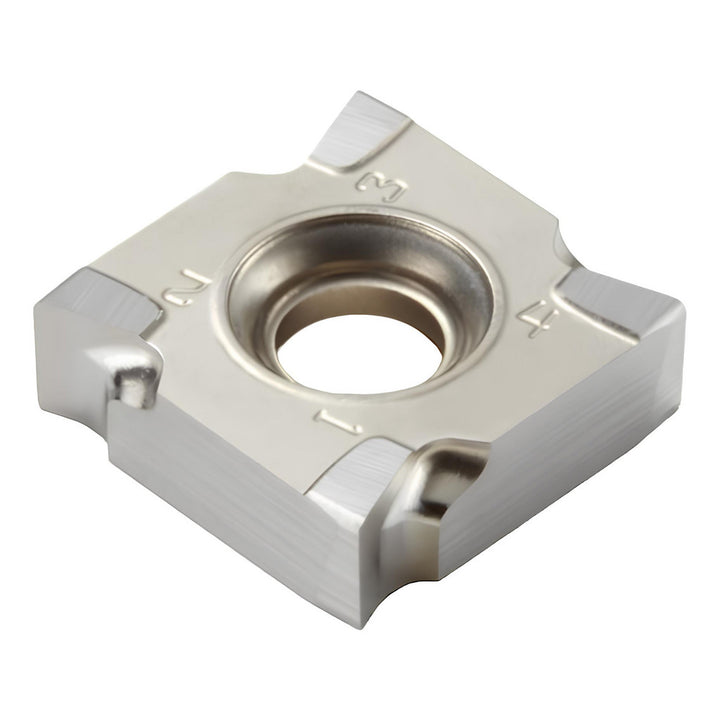

SNHQ110302ER4-E05 Solid Carbide Insert, Grade H25 - Seco 02526654
MFR# 02526654ISO/ANSI# SNHQ110302ER4-E05Cat# SNHQ110302ER4-E05Series SNHQ-11
$33.49List $42.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeH25
MaterialSolid Carbide
Description
The Seco 02526654 is a SNHQ110302ER4-E05 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.
Specifications
Ansi codeSNHQ110302ER4-E05
Chip breakerE05
Coating processUncoated
Corner radius in1/128
Cutter series compatibility335.19-11
Cutting edge effective length0.1063
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.4331
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size11
Insert size code110302
Insert styleSNHQ
Iso codeSNHQ110302ER4-E05
Length0.1063
Length range0.0000 to 0.3200
Manufacturers catalog numberSNHQ110302ER4-E05
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.1024
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle20
Relief angle0.00
Secondary workpiece materialSuperalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.1063
Thickness range0.1000 to 0.1250
Width0.4331
