Seco

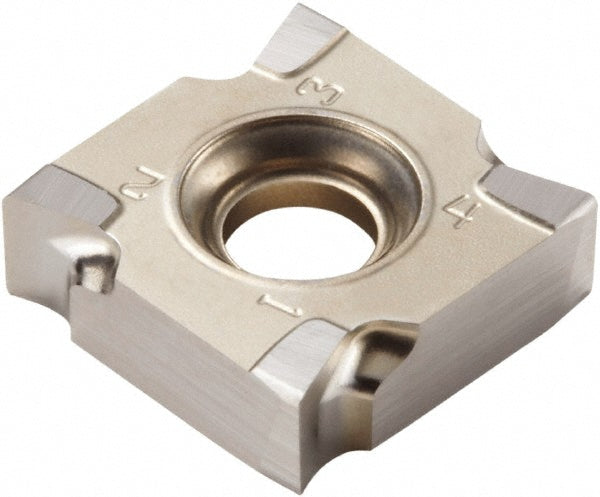

SNHQ120704ER4-E05 Solid Carbide Insert, Grade H25 - Seco 02526664
MFR# 02526664ISO/ANSI# SNHQ120704ER4-E05Cat# SNHQ120704ER4-E05Series SNHQ-12
$42.61List $54.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeH25
MaterialSolid Carbide
Description
The Seco 02526664 is a SNHQ120704ER4-E05 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.
Specifications
Ansi codeSNHQ120704ER4-E05
Chip breakerE05
Coating processUncoated
Corner radius in1/64
Cutter series compatibility335.19-12
Cutting edge effective length0.2756
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120704
Insert styleSNHQ
Iso codeSNHQ120704ER4-E05
Length0.2756
Length range0.0000 to 0.3200
Manufacturers catalog numberSNHQ120704ER4-E05
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.2441
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSuperalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness0.2756
Thickness range0.2500 to 0.3500
Width in1/2
