Seco

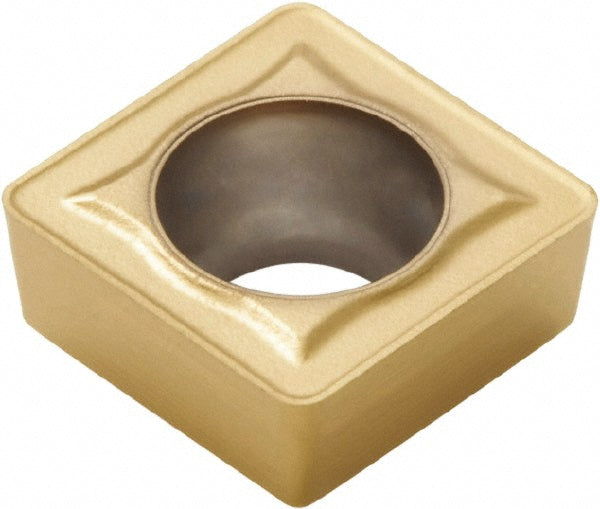

0.3126" IC Solid Carbide Insert, Grade T250D, Coated - Seco 02526787
MFR# 02526787Series Perfomax
$22.14List $28.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeT250D
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02526787 is a solid carbide indexable insert, grade T250D, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0315
Included angle degree90
Inscribed circle0.3126
Insert materialSolid Carbide
Insert size07
Insert size code07
Insert styleSCGX
Length0.3126
Manufacturer gradeT250D
Primary workpiece materialUniversal
Relief angle7
ShapeSquare
Thickness0.1252
Width0.3130
