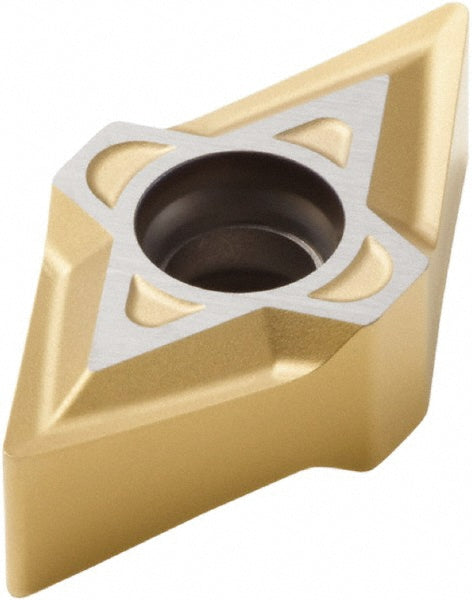

DNMU110404-MF1 Carbide Insert, Grade CP500, TiAlN - Seco 02543697

Seco

DNMU110404-MF1 Carbide Insert, Grade CP500, TiAlN - Seco 02543697

MFR# 02543697ISO/ANSI# DNMU331-MF1Series DNMU-MF1

$19.71List $25.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02543697 is a DNMU110404-MF1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerMF1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle55degree
Industry standard numberDNMU331-MF1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.9134
Insert materialCarbide
Insert shapeDiamond 55
Insert size code331
Insert styleDNMU
Insert thickness in3/16
Iso codeDNMU110404-MF1
Lead angle55degree
Length range0.7000 - 10.0000
Manufacturers catalog number02543697
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4409
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
