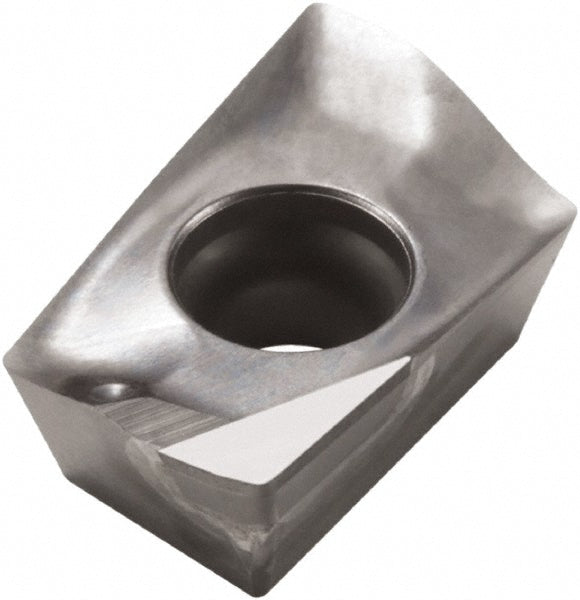

XOEX120404FR PCD (Polycrystalline Diamond) Insert, Grade PCD20 - Seco 02546819
MFR# 02546819ISO/ANSI# XOEX120404FRCat# XOEX120404FRSeries XOEX-12
$284.35
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradePCD20
MaterialPCD (Polycrystalline Diamond)
Description
The Seco 02546819 is a XOEX120404FR pcd (polycrystalline diamond) indexable insert, grade PCD20. Suited for non-ferrous metal.
Specifications
Ansi codeXOEX120404FR
Chip breakerNone
Coating processUncoated
Corner radius in1/64
Cutter series compatibilityR217.69-12; R220.69-12
Cutting edge effective length0.1575
Cutting edge styleSharp
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3220
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialPCD (Polycrystalline Diamond)
Insert shapeParallelogram
Insert size12
Insert size code120404
Insert styleXOEX
Iso codeXOEX120404FR
Length in35/64
Length range0.5000 to 0.6000
Manufacturers catalog numberXOEX120404FR
Manufacturer gradePCD20
Material applicationNon-Ferrous Metal
Material gradeMedium Grain
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle15
Relief angle15
Secondary workpiece materialNon-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1980
Thickness range0.1850 to 0.2000
Width0.3220
