Seco

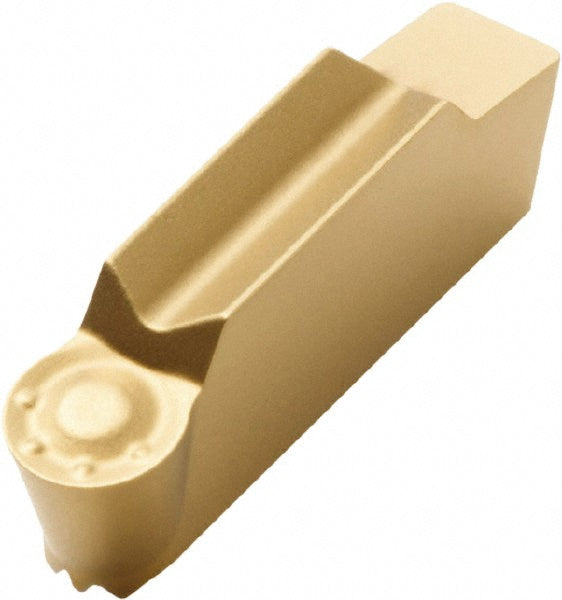

Solid Carbide Insert, Grade CP200, Coated - Seco 02551635
MFR# 02551635Series MDT
$33.95List $43.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCP200
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02551635 is a solid carbide indexable insert, grade CP200, Coated coated. Suited for superalloy, titanium.
Specifications
ChipbreakerMP
Coating finishCoated
Coating processPVD
Corner radius0.0790
Cutting height0.1770
Full radiusYes
Full radius insertYes
Insert handNeutral
Insert length0.6790
Insert materialSolid Carbide
Insert size code1604M0
Insert styleLCMR
Manufacturer gradeCP200
Material gradeMicrograin
Maximum cutting width0.1570
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Single or double endSingle
StyleLCMR1604M0-0400-MP
