Seco

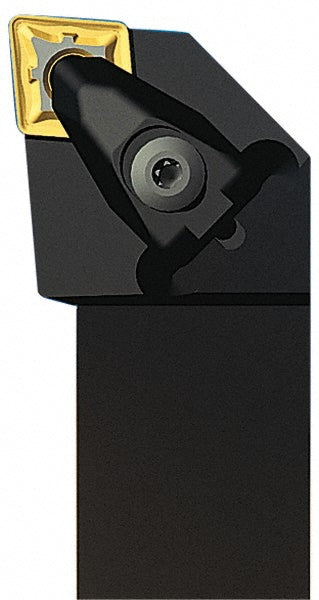

Indexable Turning & Profiling - Seco 02564754
MFR# 02564754Series Clamp Lock
$147.35List $168.48
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02564754 indexable turning & profiling. Suited for universal. Series Clamp Lock.
Specifications
Back of bar to cutting edge in1
Compatible insert size codeCN43
Complete insert compatibilityCN.. 43..
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.3000
Insert compatibilityCN..43.
Insert holding methodClamp
Insert inscribed circle in1/2
Lead angle95.0
Multi use toolNo
Overall length in4-1/2
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleDCLN
