Seco

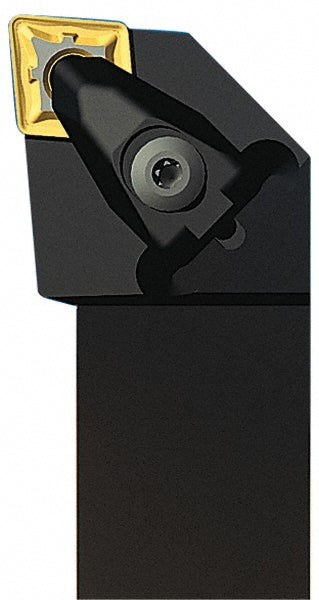

Indexable Turning & Profiling - Seco 02565460
MFR# 02565460Series Clamp Lock
$154.91List $177.12
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02565460 indexable turning & profiling. Suited for universal. Series Clamp Lock.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCN54
Complete insert compatibilityCN.. 54..; CNGA; CNGP; CNMA; CNMG; CNMM; CNMP
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.6500
Insert compatibilityCN..54.
Insert holding methodClamp
Insert inscribed circle in5/8
Lead angle95.0
Multi use toolNo
Overall length in6
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleDCLN
