Seco

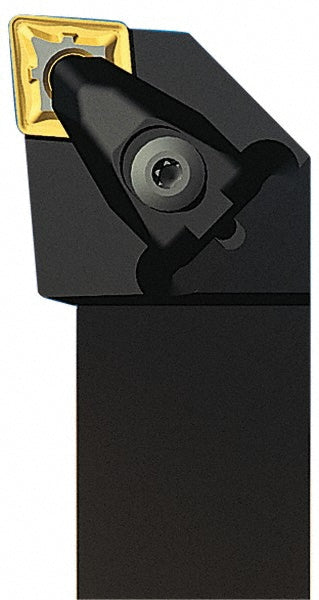

Indexable Turning & Profiling - Seco 02565461
MFR# 02565461Series Clamp Lock
$208.76List $238.68
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02565461 indexable turning & profiling. Suited for universal. Series Clamp Lock.
Specifications
Back of bar to cutting edge1.5000
Compatible insert size codeCN54
Complete insert compatibilityCBNN; CNGA; CNGP; CNMA; CNMG; CNMM; CNMP
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.5700
Insert compatibilityCN..54.
Insert holding methodClamp
Insert inscribed circle in5/8
Lead angle95.0
Multi use toolNo
Overall length in6
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height in1-1/4
Shank width in1-1/4
Toolholder materialSteel
Toolholder styleDCLN
