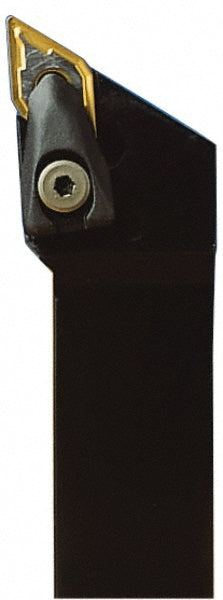

Indexable Turning & Profiling - Seco 02565497
MFR# 02565497Series Clamp Lock
$154.77List $173.88
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02565497 indexable turning & profiling. Suited for universal. Series Clamp Lock.
Specifications
Back of bar to cutting edge in1
Compatible insert size codeDN43/DN44
Complete insert compatibilityDN.. 43..; DNGA; DNGM; DNGP; DNMA; DNMG; DNMP; DNMX
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.6500
Insert compatibilityDN..43.
Insert holding methodClamp
Insert inscribed circle in1/2
Lead angle93.0
Multi use toolNo
Overall length in4-1/2
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleDDJN
