Seco

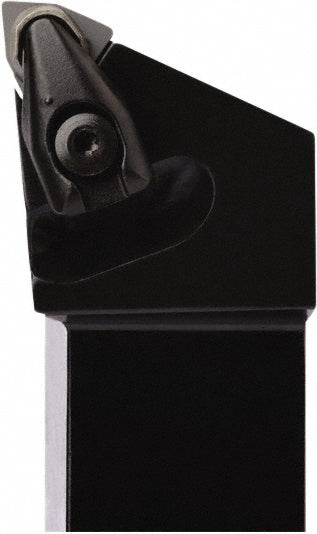

Indexable Turning & Profiling - Seco 02565564
MFR# 02565564Series Clamp Lock
$154.77List $173.88
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Seco 02565564 indexable turning & profiling. Suited for universal. Series Clamp Lock.
Specifications
Back of bar to cutting edge in1
Compatible insert size codeTN33
Complete insert compatibilityTN.. 33..; TNGA; TNMA; TNMG; TNMM; TNMP
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.1800
Insert compatibilityTN..33.
Insert holding methodClamp
Insert inscribed circle in3/8
Lead angle90.0
Multi use toolNo
Overall length in4-1/2
Primary workpiece materialUniversal
RakeNegative
Rake angle-6
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleDTGN
